Description

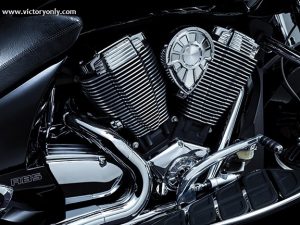

Victory Chrome / Black Engine Valve Cover Accents
CUSTOM VICTORY MOTORCYCLE ENGINE INSERT FIN DESIGN TO COMPLETE THE LOOK OF THE CYLINDER AND MAKE THE MOTOR LOOK BOLDER. INCLUDES ONE FOR EACH CYLINDER OF THE VICTORY MOTOR.
Designed to compliment the fin design on the Victory Motorcycle Cylinder’s, these unique Valve Cover Accents install in seconds without the need to disassemble the motor. Available in Tuxedo or Chrome Finish.
Kuryakyn Black or Chrome Bahn Valve Cover Accents for Victory Motorcycle (pr)
No Longer being made get yours while you can! We bought over 100 sets of these to offer this amazing Price.
BAHN VALVE COVER ACCENT, VICTORY
THANK YOU FOR CHOOSING KϋRYAKYN AND VICTORY ONLY !
PROTECT YOURSELF AND OTHERS FROM POSSIBLE INJURY AND PROPERTY DAMAGE
OR LOSS. PAY CLOSE ATTENTION TO ALL INSTRUCTIONS, WARNINGS, CAUTIONS,
AND NOTICES REGARDING THE INSTALLATION, USE, AND CARE OF THIS
PRODUCT.
MAKE SURE THE FOLLOWING PARTS HAVE BEEN INCLUDED IN THE KIT:
2 BAHN Valve Cover Accents for Victory
2 Alcohol pad
1 Installation instructions
TOOLS SUGGESTED:
Warm soapy water and a clean rag, masking/painter’s tape
STEP 1 Read and understand all steps in the instructions before starting the installation.
Park the motorcycle on a hard, level surface and turn off the ignition. Allow the engine
and exhaust system to cool.
Küryakyn warrants that any Küryakyn products
sold hereunder, shall be free of defects in
materials and workmanship for a period of one
(1) year from the date of purchase by the
consumer excepting the following provisions:
● Küryakyn shall have no obligation in the event
the customer is unable to provide a receipt
showing the date the customer purchased the
product(s).
●The product must be properly installed,
maintained and operated under
normal conditions.
●Küryakyn makes no warranty, expressed or
implied, with respect to any gold plated
products.
●Küryakyn shall not be liable for any
consequential and incidental damages, including
labor and paint, resulting from failure of a
Küryakyn product, failure to deliver, delay in
delivery, delivery in nonconforming condition, or
for any breech of contract or duty between
Küryakyn and a customer.
●Küryakyn products are often intended for use in
specific applications. Küryakyn makes no
warranty if a Küryakyn product is used in
applications other than intended.
●Küryakyn electrical products are warranted for
one (1) year from the date of purchase by the
consumer. L.E.D.’S contained in components of
Küryakyn products will be warranted for defects
in materials and workmanship for 3 years from
the date of purchase where as all other
components shall be warranted for one(1) year.
This includes, but is not limited to; control
modules, wiring, chrome & other components.
●Küryakyn makes no warranty of any kind in
regard to other manufacturer¹s products
distributed by Küryakyn. Küryakyn will pass on
all warranties made by the manufacturer and
where possible, will expedite the claim on behalf
of the customer, but ultimately, responsibility for
disposition of the warranty claim lies
with the manufacturer.
BAHN VALVE COVER ACCENTS FOR VICTORY
7635-21MC-0314 -cont.-
THIS INDICATION ALERTS YOU TO THE FACT THAT
IGNORING THE CONTENTS DESCRIBED HEREIN CAN
RESULT IN POTENTIAL DEATH OR SERIOUS INJURY.
This indication alerts you to the fact that ignoring the
contents described herein may negatively affect product
performance and functionality or damage the product itself
or the product to which it is being attached.
This indication alerts you to the fact that ignoring
the contents described herein can result in minor or
moderate potential injury.
7635
These installation instructions contain important information.
Ensure that the end user receives this copy and is aware of its
importance for future reference.
YOU WILL BE WORKING AROUND THE ENGINE AND
EXHAUST SYSTEM DURING INSTALLATION. ENSURE
THAT THE ENGINE AND EXHAUST SYSTEM HAVE
FULLY COOLED TO PREVENT INJURY.
Ensure proper adhesion of this product. Clean the installation
area of grease, oil, bugs, dirt and other debris (including wax
and polish). Küryakyn WILL NOT issue a warranty for any improperly
installed products.
Do not attempt this installation in temperatures below 50° F.
Proper adhesive bonding ONLY occurs above 50° F.
PAGE
2
STEP 2 Refer to PIC 1. Using warm soapy water and a clean rag, remove all dirt and debris from the
valve covers; allow the areas to dry completely. Wipe the valve covers with the included alcohol
pads to remove any wax or polish; allow the areas to dry completely.
STEP 3 Position the BAHN Valve Cover Accent for Victory as shown in PIC 1. Rest the Accent on a piece of
cardboard (e. g. the backing card from the packaging) to space it up from contact with the top
cylinder fin. Use masking tape to make alignment marks; remove the Accent.
STEP 4 Use your fingernail to rub the adhesive backing on the Accent; this will activate the adhesive. Remove
and discard the backing.
STEP 5 Using the marks made in STEP 3, align the Accent and press it into place for one minute (apply
pressure to the top half of the Accent only); full bonding will occur after 24 hours. Remove the
cardboard and discard the masking tape.
STEP 6 Repeat STEPS 3 through 5 for the other Accent.
BAHN VALVE COVER ACCENTS FOR VICTORY INSTALLATION
Ride On!
PIC 1 VIEWED FROM BRAKE-SIDE (RIGHT)
CLEAN THE VALVE COVERS
REST THE ACCENT ON A PIECE OF
CARDBOARD TO SPACE IT UP FROM
CONTACT WITH THE TOP CYLINDER
FIN
