Description

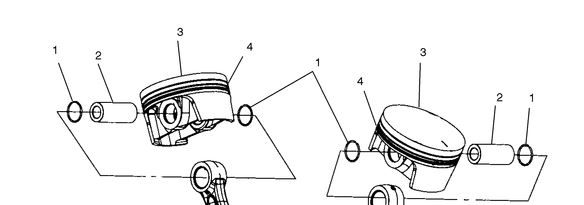

Victory V92C Piston Kit Classic Cruiser 97 mm Bore / 101 mm bore
| 1510cc | 97mm | STD | 10.5:1 | 353 | FSR |
Complete piston and ring engine kit. 2 Pistons included
- Machined from 2618 T6 high tensile forged aluminum
- Dome/Dish features smooth flowing radii and require no deburring or preparation
- specifically engineered for extreme applications including professional competition
- Ready to fit Pins, wire pin locks and piston rings included
- note please allow 4 weeks lead time on special order piston & ring kits
- choose from 97 mm or 101 mm bore size
Victory Models
- Victory V92C 2002
- Victory V92C Classic 2003
- Victory V92C Deluxe 2002
- Victory V92TC 2002 – 2006
- Victory V92TC Deluxe 2002
- Victory V92TC Touring 2003
| Retaining Clips |
Maximum Pin Diameter: 0.875inMaximum Pin Diameter ALT: 22.2250mmMinimum Pin Diameter: 0.866inMinimum Pin Diameter ALT: 21.9964mm
Pin Specifications
| Coating: | None |
| Edge Type: | Chamfered |
| Length: | 2.050in |
| Nominal Weight: | 103g |
| Outside Diameter: | .866in |
| Outside Diameter Alt: | 21.9964mm |
| Series: | 51 Series |
| Type of Material: | 5115 Low Carbon/Case-Hardened Steel |
| Wall Thickness: | 0.180in |
| Wall Type: | Straight |
Ring Specs
| Actual Bore Size: | 3.819in |
| Actual Bore Size (Alternate): | 97.00mm |
| Ring Kit – Oil Radial Width: | 0.128in |
| Ring Kit – Oil Thickness: | 2.0mm |
| Ring Kit – Oil Type: | CUF |
| Ring Kit – Second Radial Width: | 0.171in |
| Ring Kit – Second Thickness: | 1.5mm |
| Ring Kit – Second Type: | IPA |
| Ring Kit – Top Radial Width: | 0.147in |
| Ring Kit – Top Thickness: | 1.2mm |
| Ring Kit – Top Type: | CUS |
Victory V92C Piston Kit Classic Cruiser 97 mm Bore / 101 mm bore
