Trailer Wiring Harnesses

Safely and effectively apply the load from your trailer lighting to the battery and not to the rest of the bike’s electrical system.

Eliminate blown fuses caused by overloading stock lighting or accessory circuits.

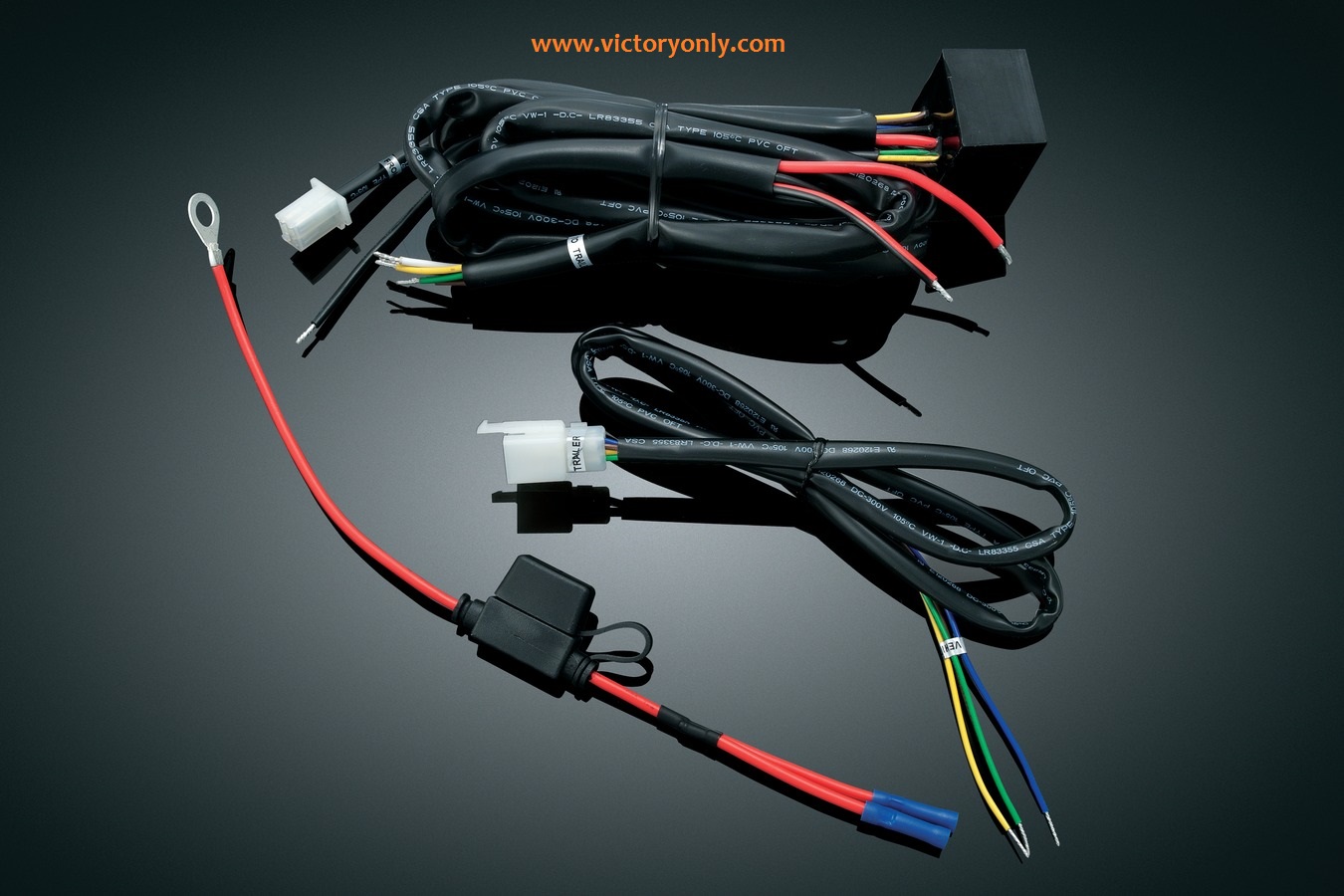

Our relay harness utilizes inputs from the motorcycle to direct power from the battery to the appropriate trailer lighting circuit.

  • 5 Wire Plus 1: Our kits provide standard 5 wire output (run, brake, left turn, right turn, ground) plus a bonus wire that can be connected as needed to provide fused 12v power to the trailer for compartment lights or keyless entry systems that are wired independently of the trailers essential lighting.
  • Sold Separate Only used on certain trailers 5 to 4 Wire Converter: Plugs in & allows our Wiring & Relay Kits to power trailers requiring a 4-wire harness (run, left turn/brake, right turn/brake, ground). See products below for 5 to 4 Converter.
  • The bonus wire is still available to provide fused 12v power to the trailer for compartment lights or keyless entry systems that are wired independently of the trailers essential lighting. (Includes 4-pin flat vehicle connector)
  • Receptacle kits are not included because the style of receptacle used on trailers varies depending on the manufacturer.
7671 Universal 12V Applications on Motorcycles with Separate Taillight and Turn Signals

MOUNTING INSTRUCTIONS

Victory Only Motorcycles carries the largest stock of custom and aftermarket parts & accessories for
Victory Motorcycle Jackpot, Victory Motorcycle 8 Ball, Victory Motorcycle Judge, Victory Motorcycle Vision,
Victory Motorcycle Cross Country Xc, Victory Motorcycle Cross Roads XR, Victory Motorcycle Boardwalk, Victory Motorcycle Highball,
Victory Motorcycle Gunner,Victory Motorcycle Kingpin, Victory Hammer, Ness Models,
Victory Motorcycle Vegas, Victory Motorcycle Vegas Jackpot, Victory Motorcycle V92C Classic Cruiser,
Victory Motorcycle V92Sc Sport Cruiser, Victory Motorcycle V92TC Touring Cruiser, Victory Hardball,
Victory Motorcycle Kingpin Low, Victory Motorcycle Gunner, Victory Motorcycle Custom Bagger Bikes,Victory Hammer 8ball,
Victory Motorcycle Custom Build Arlen & Corey Ness bikes. motorcycles with worldwide shipping to Canada, Uk,
Australia and anywhere a Victory Motorcycle rider wants to ride a show quality bike.

Trailer Wiring Harnesses

Additional information

Weight .5 lbs
