Description

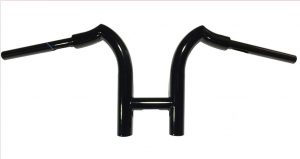

10″ PHATTY PHAT 1-1/2″ MENACING MONKEY APE HANGER HANDLEBARS
10″ PHATTY PHAT 1-1/2 MENACING MONKEY APE HANGER FOR VICTORY VEGAS, VEGAS 8 BALL, HIGH BALL, GUNNER, JACKPOT, KINGPIN, BOARDWALK, JUDGE
MADE WITH HEAVY DUTY .120 DOM 1-1/2 STEEL
1/2 x 13 THREADED INSERTS WELDED INTO THE BASES (bolts not supplied)
FOR STANDARD VICTORY TREES MOUNTING 5″ CENTER TO CENTER
1 1/2” TUBING STEPPED DOWN TO 8.50″ OF 1″ TUBING FOR HAND CONTROLS
.120 WALL THICKNESS.
100% TIG WELDED.
- PRE DRILLED FOR WIRING
- THESE COME POWDER COAT GLOSSY OR SATIN BLACK •
PLEASE LET US KNOW WHAT FINISH YOU WOULD LIKE
-
- THERE A GREAT FEEL AND LOOK
- 32” BAR TIP TO BAR TIP
- 10″ UP RISE
- 4” OF PULLBACK
- • WE CAN MAKE THESE ANY RISE OR PULLBACK AT NO ADDITIONAL CHARGE
- 3 days to ship raw, 7-10 days to ship powder coat
On the inside of the switch housings there is a little alignment dowel that will need to be ground down with a file or dremel tool or bars notched to fit if using stock controls
Some Grips fit tighter and bars will need to be sanded on the throttle side if not turning smooth prior to install.
MOST INSTALL CASES THESE WORK WITH THE STOCK CABLES. WE HAVEN’T TESTED EVERY YEAR AND TRIM MODEL BUT AS OF THE ONES WE HAVE INSTALLED STOCK CABLES DID WORK NO PROBLEM .

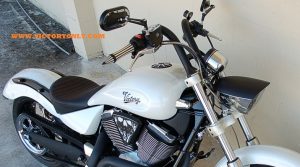

Installed on a Victory Motorcycle
handlebar phatty phat installed on a Victory Motorcycle
monkey bars installed on victory vegas
monkey bars installed on victory vegas
