Engine Cover Skull and Bones

$299.95

Victory Accessories

Description

Engine Cover Skull and Bones These new Chromed Billet Engine covers will give your Victory a custom look. The Inlay version has a beautifully laser cut steel powder coated and chromed inlayed artwork. The MIA version is shown, others available.

BOTH SIDES ARE INCLUDED THE 180MM AND 110MM Fits all Victory Motorcycles

Chrome Base, White Backer, Chrome Artwork Shown Below

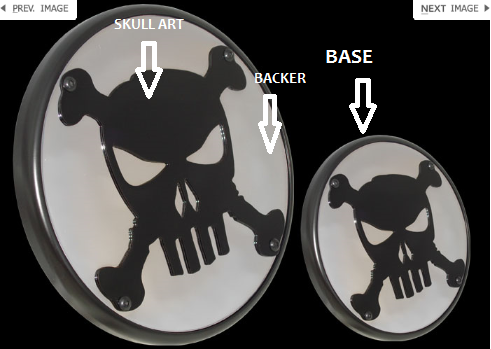

black_base_chrome_background_skull_art_victory_BREAKDOWN

Chrome Base, Black Backer, Chrome Artwork Shown Below

skull_side_cover_installed_vegas

Black Base, Chrome Backer, Black Artwork Shown Below

engine_cover_skull_and_bones_black_base

Red Base, White Backer, Chrome Artwork Shown Below

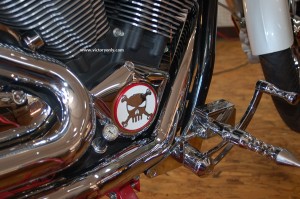

right_side_engine_cover_victory_motorcycle_red_base_installed

white_blackground_chrome_skull_victory_motorcycle

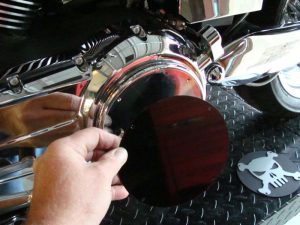

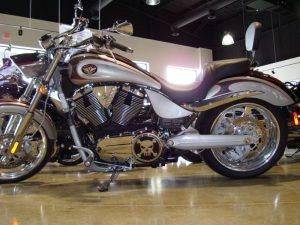

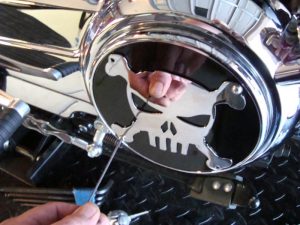

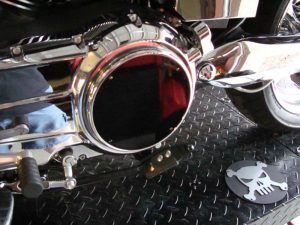

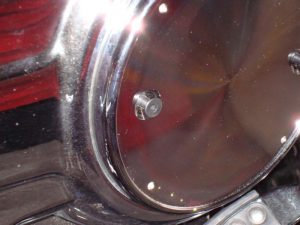

  ***MADE IN THE USA*** Installation Instructions: 1) Remove stock cover by removing 2 flat head screws. (keep screws for install of new back plate. 2) Install new back plate with 2 flat head screws from stock cover. ( Use Blue Loctite on screws) ENGCO01 3) Install Black Backing Plate and line up 4 holes to holes in back plate. ( a dab of grease will hold it in place) ENGCO02 ENGCO03 4) Install Design plate this is the Skull and Cross Bones design. ( install 1 of the 4MM screws to hold it inplace) ENGCO04 5) Using a little Blue Loctite install the other 3 screws and tighten, remove first screw and apply Loctite re install and tighten. ENGCO05 6) Clean it up with a soft cloth and some good chrome wax and it should look like this: ENGCO06     victory_only_thank_you_flame_horn_victory_only
