LED LIGHTING STRIP FLEXIBLE TRUFLEX

TruFLEX® is a flexible LED lighting strip that has been engineered from the ground up for maximum performance and reliability.

It is unlike any other flexible LED strip on the market today in terms of look, performance, flexibility, reliability, or warranty.

Every aspect of the design has been engineered for performance and reliability.

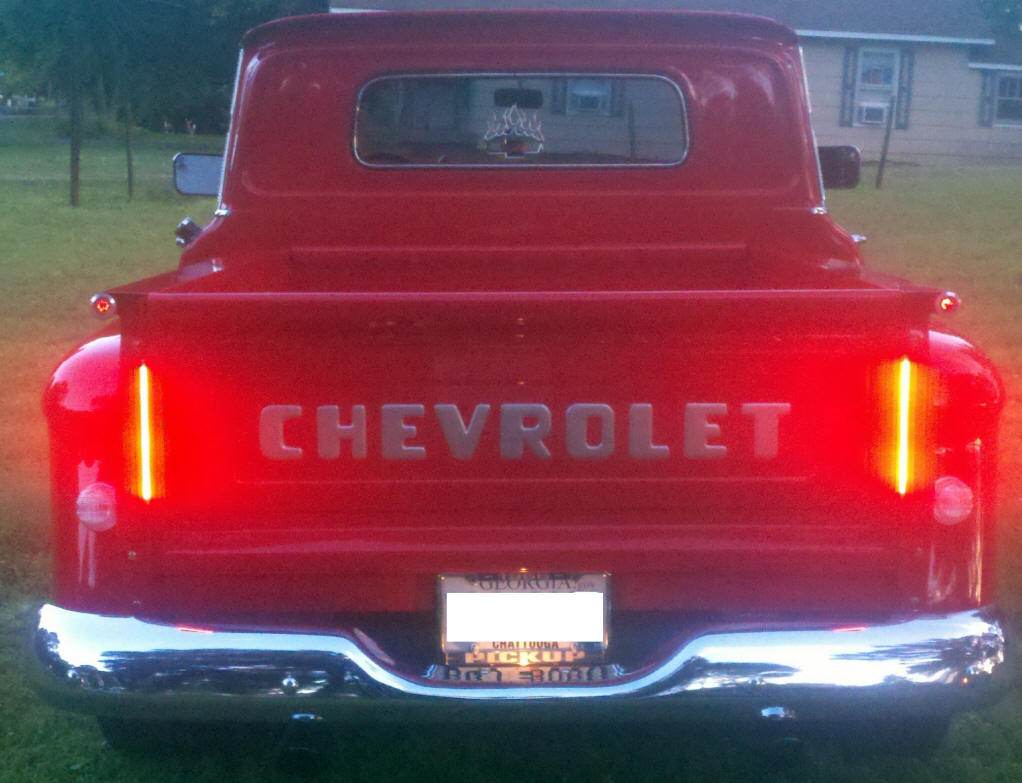

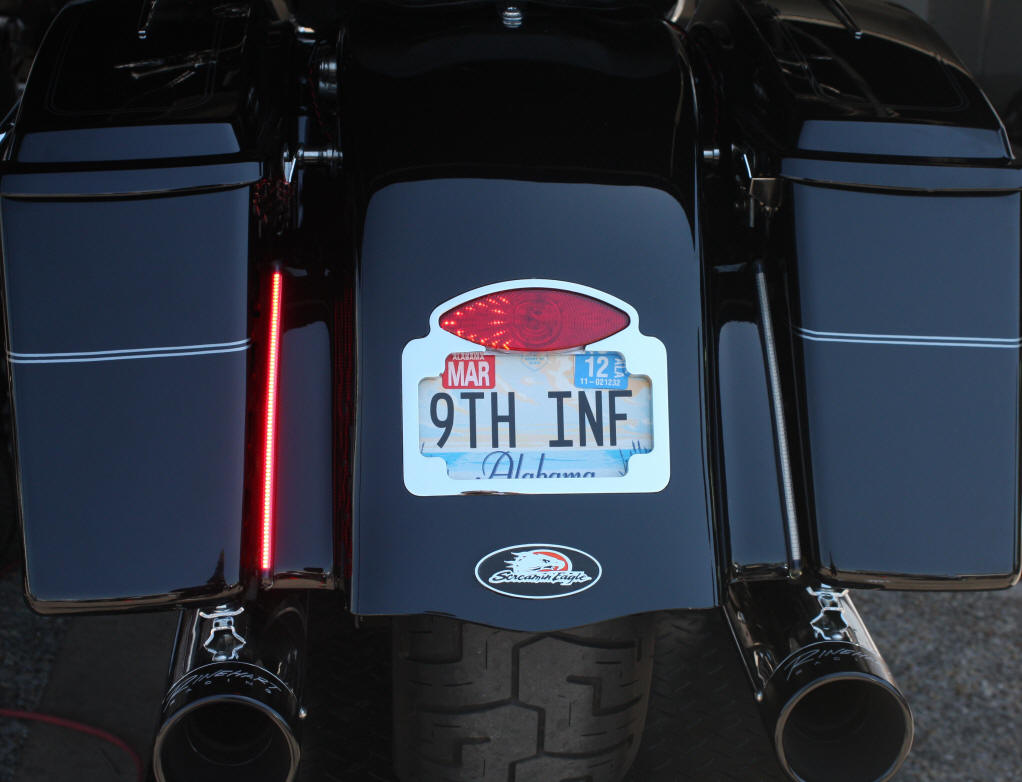

TruFLEX®  can be used for running lights, turn signals, tail lights, or brake lights on any 12VDC system including motorcycles, automobiles, trucks, boats, ATVs, and snowmobiles.

Our unique tube design with Flat Side Surfaces allow TruFLEX® to be mounted on either side surface with our optional side mount kit or mount Standard on the bottom surface.

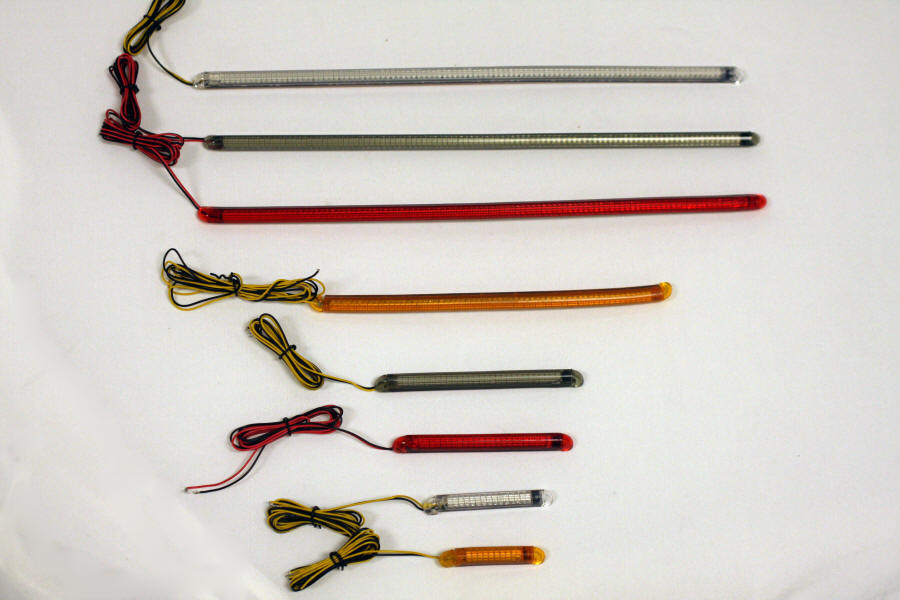

Available with Red, Amber, or White LEDs in a choice of Clear, Amber, Red, or Smoked Tubing.

TruFLEX® is a 2 Wire System, Single Intensity; Select a Dual Converter to Convert to a 3 Wire Dual Intensity System (ie run/brake or run/turn)

TruFLEX®  Advantages

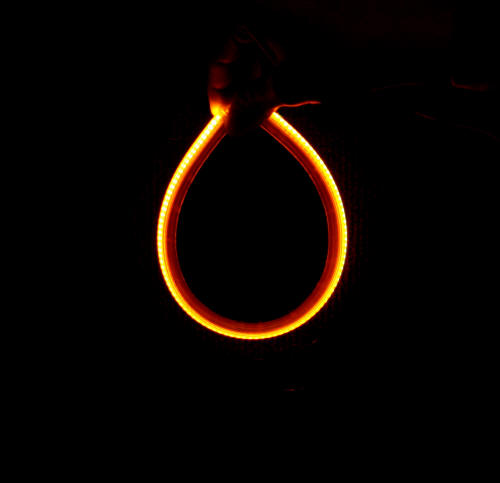

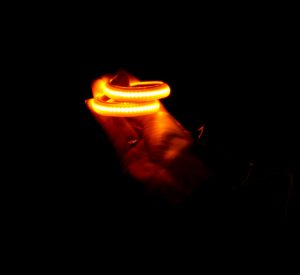

FR4 Board:  Engineered for Improved Flexibility, Board can be flexed into a small radius circle
LED’s: 120 Degree Viewing Angle, Genesis® Surface Mount LED’s; Amber, Red, or White

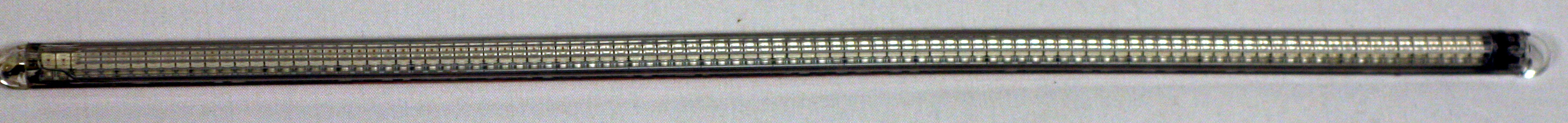

Housing Color: Choice of Clear,Amber, Red, or Smoked

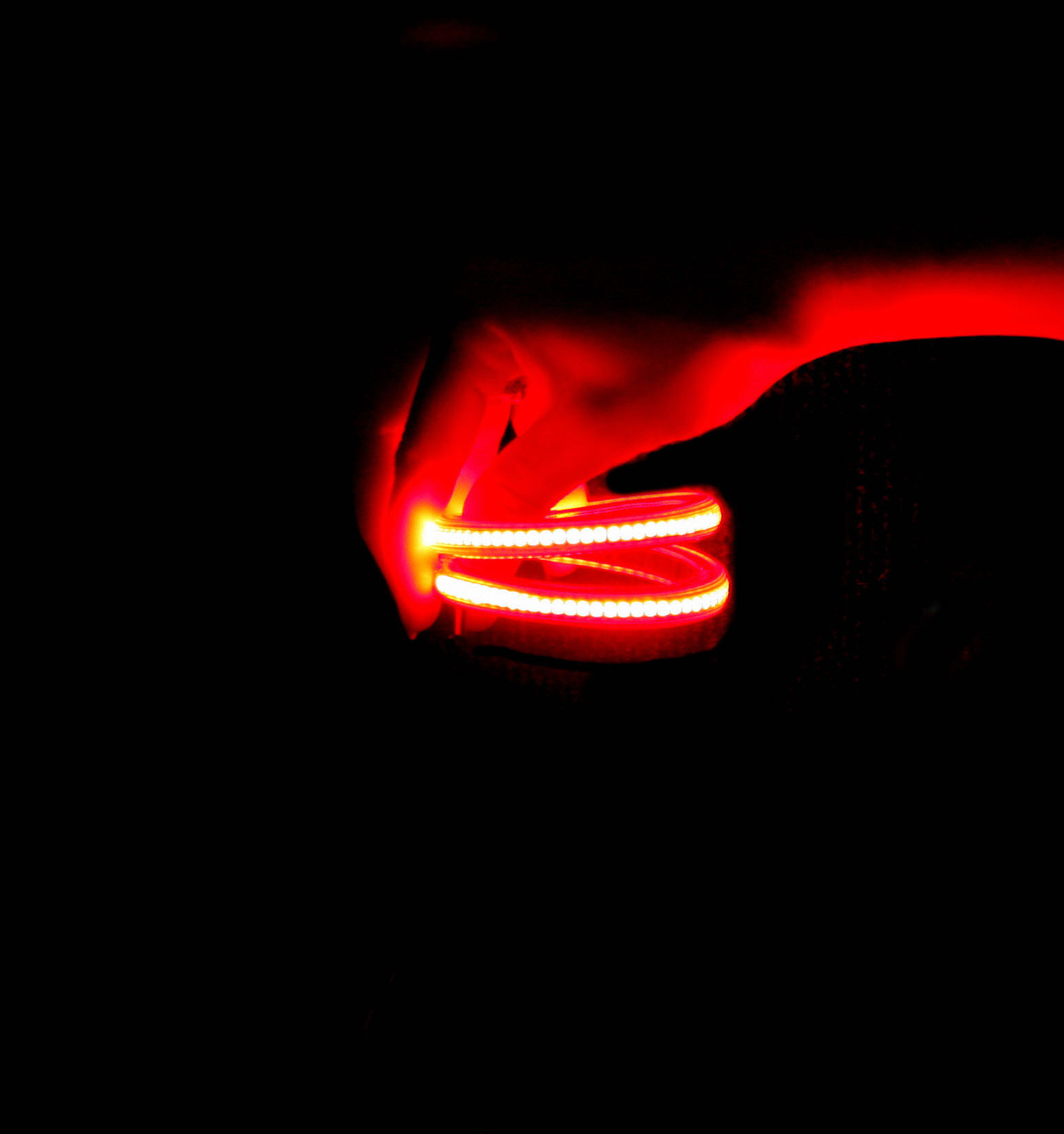

Housing: Engineered for Maximum Flexibility, no need to warm/heat to bend housing; UV Stable
TruFLEX® is 0.34″ Wide X 0.30″ High
Light Dispersion: Unique Facet Design Increases Viewing Angle & Improves Performance
Mounting: Standard Bottom or Optional Side Mounting
End Cap: 100% Sealed with UV Stable Military Grade RTV (MIL-A-46146)
Wire: 36″ Stranded Copper 26 Gauge Wire
Attachment: Pre-Taped with 3M Automotive Acrylic Plus Attachment Tape
Voltage: Wide Operating Range: 9-14 VDC
Low Current Draw: Approximately 25mA for every 5 LEDs

TruFLEX® Warranty

Lifetime Warranty Against LED Failure

Lifetime Warranty Against Water Damage

Lifetime Warranty Against UV Damage

Lifetime Warranty Against Wire Breakage

TruFLEX® is 0.34″ Wide X 0.30″ High

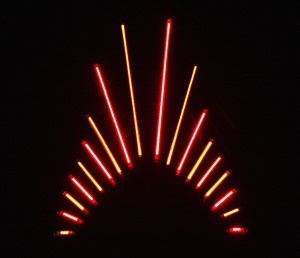

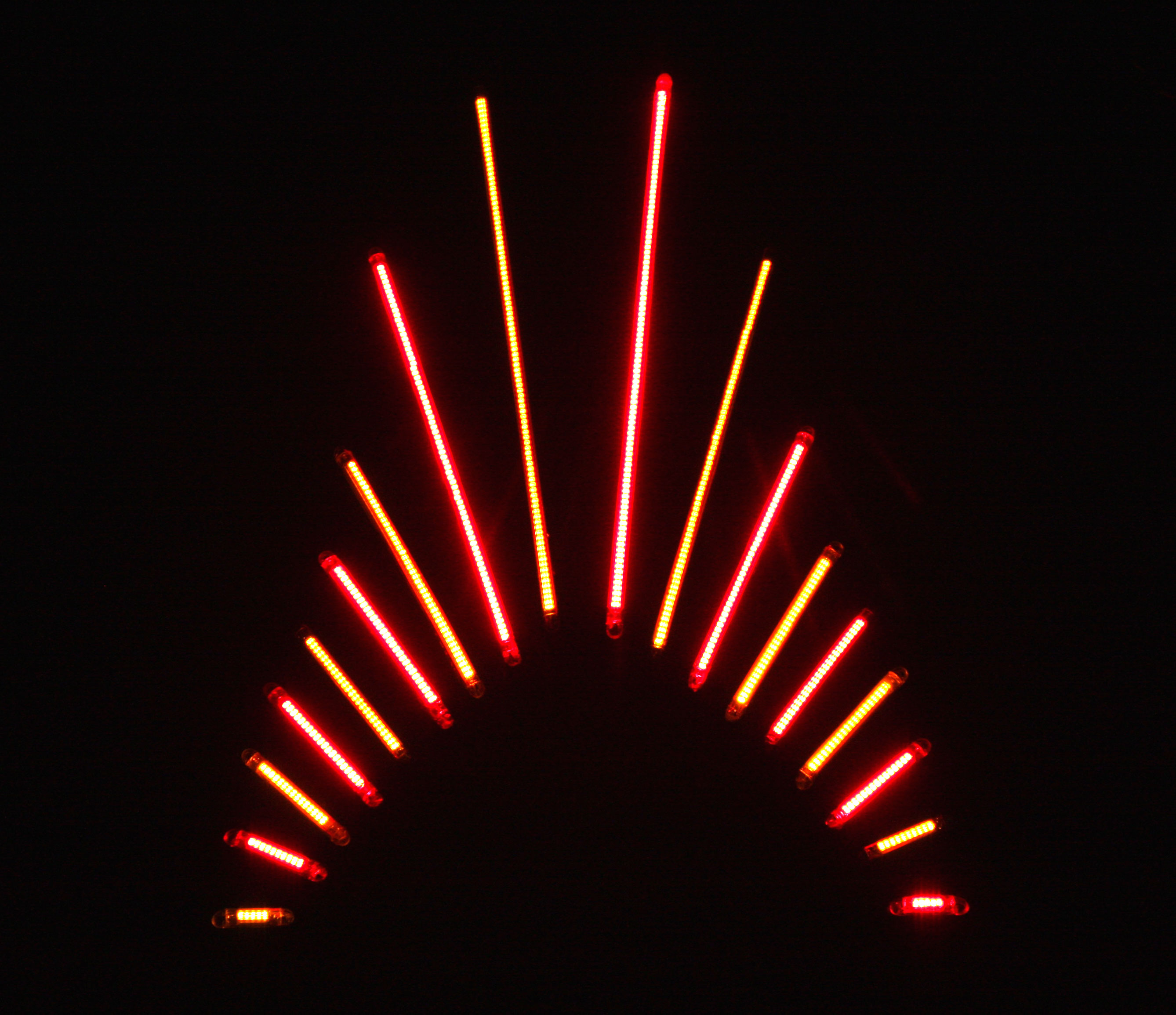

TruFLEX® Sizes
Amber & Red LED’s (1mm LED Spacing)

5 LED 1.57″ 40 MM
10 LED 2.17″ 55 MM
15 LED 2.76″ 70 MM
20 LED 3.35″ 85 MM
25 LED 3.94″ 100 MM
30 LED 4.53″ 115 MM
40 LED 5.70″ 145 MM
45 LED 6.30″ 160 MM
50 LED 6.90″ 175 MM
55 LED 7.50″ 190 MM
60 LED 8.10″ 206 MM
65 LED 8.60″ 218 MM
75 LED 9.84″ 250MM
100 LED 12.80″ 325 MM
115 LED 14.60″ 370 MM
